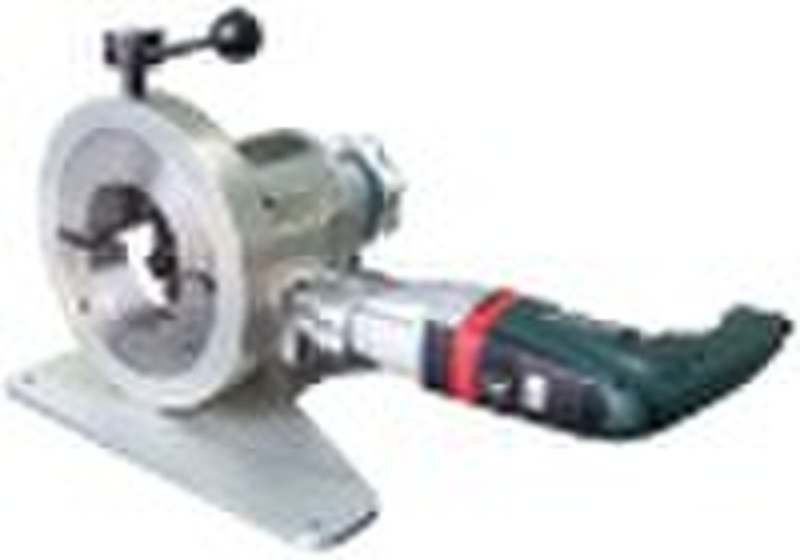

Pipe Squaring Machine / Pipe Facing Machine

Tube Squaring / Beveling Machine / Pipe Facing Machine: LEFON SquareDevil, the portable tube squaring machine is specially designed to flatten and bevel tube end, making it burr-free, and perfect straight to the axis of the tube. After facing, the tube would be ready for orbital welding or other tube fabrication, ideal for high purity / high sanitary industry use, such as Beverage, Dairy, Pharmaceutics, Water treatment, Food, Semi-conductor industry etc. Key Specifications/Special Features:Faces and Bevel most metals including stainless steel, nickel and carbon steels, , chrome, copper-nickel alloy, aluminum Wide range of collets (clamp)/ OD Mounting Saddles available, to avoid any tube distortion Three SquareDevil model available, to work on tube from 1/8” OD to 4 1/2” OD High quality collets made from stainless steel rather than aluminum Can face and bevel tube wall thickness up to 10mm 120/220 V powerful Metabo electrical motor Micro feed system Supply full range of bevel and squaring Bit ModelPipe OD (inch)Pipe OD (mm)Max Wall Thickness(mm)RPMDrive MotorInput PowerWeight (kg)SquareDevil-1.50.125”-1.5”3.175-38.14400Metabo,110/220v1020w4SquareDevil-2.00.1875”-2”4.76-50.810160Metabo,110/220v1020w11SquareDevil-4.50.25”-4.5”6.35-114.310140Metabo,110/220v1020w19
